HUAWEI 5G CPE PRO2 5G 3.6GBPS WIFI 6 PLUS 2976 MBPS

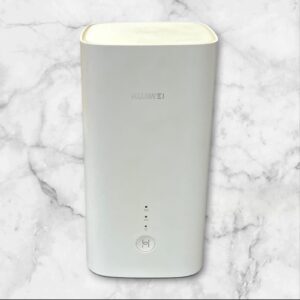

The Huawei 5G CPE Pro 2 (model H122-373) is a high-performance 5G wireless router designed for home and small office use, providing fast internet access by leveraging 5G cellular networks.¹ It’s a significant upgrade from its predecessor, the Huawei 5G CPE Pro.

Here’s a breakdown of its key features and what the specifications you provided mean:

Key Specifications and Features:

• 5G Transmission Rate: 3.6 Gbps (Theoretical Peak Download Speed): This is a headline feature.² It indicates the maximum theoretical download speed the device can achieve over a 5G network.³ In real-world scenarios, actual speeds will depend heavily on your mobile network operator, signal strength, network congestion, and the specific 5G bands deployed in your area.⁴ This speed allows for downloading large files, streaming 8K/4K videos, and supporting demanding online activities with minimal buffering.



• 5G Super Uplink: This is a Huawei-specific technology that merges TDD (Time Division Duplex) and FDD (Frequency Division Duplex) to significantly boost upload speeds.⁵ This is crucial for applications like video conferencing, live streaming, cloud uploads, and online gaming, where fast uploads are as important as downloads.⁶ Huawei claims 20-60% faster upload speeds in near-field and 200-400% faster in far-field compared to previous models.⁷



• Wi-Fi 6 Plus (2976 Mbps DBDC):
  • Wi-Fi 6 (802.11ax): This is the latest Wi-Fi standard (at the time of its release) that brings significant improvements over Wi-Fi 5 (802.11ac), including faster speeds, better efficiency, and improved performance in congested environments.⁸



  • Wi-Fi 6 Plus: This is Huawei’s enhanced version of Wi-Fi 6, which leverages chipset synergy with Huawei devices to achieve even higher speeds, particularly when paired with compatible Huawei smartphones (e.g., those supporting 160 MHz bandwidth).⁹



  • 2976 Mbps (DBDC): This refers to the Dual-Band Dual Concurrent theoretical maximum Wi-Fi speed. This speed is a combination of the theoretical maximums for both the 5 GHz and 2.4 GHz bands:
    • 5 GHz: 2402 Mbps (theoretical): The faster Wi-Fi band, ideal for short-range, high-bandwidth applications.
    • 2.4 GHz: 574 Mbps (theoretical): The slower Wi-Fi band, offering better range and penetration through walls.
  • Antenna Type: Built-in dual-band Wi-Fi antennas, often featuring Huawei’s patented magnetic-electric dipole Wi-Fi antenna for 360° signal coverage.¹⁰



• Processor: Powered by Huawei’s Balong 5000 chipset (for 5G connectivity) and Gigahome Wi-Fi chipset (for Wi-Fi 6 capabilities).¹¹ The Balong 5000 is a powerful 5G multi-mode chipset that supports both NSA (Non-Standalone) and SA (Standalone) 5G networks and a wide range of 5G frequency bands (up to 11 bands), making it suitable for global use.¹²



• Connectivity:
  • SIM Card Slot (Nano-SIM): Allows you to insert a 5G/4G SIM card from your mobile network operator.¹³

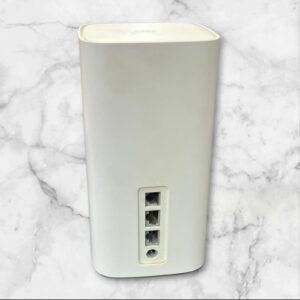

  • Ethernet Ports: Typically includes 1 WAN/LAN GE (Gigabit Ethernet) port and 1 LAN GE port, allowing for wired connections to devices like PCs, gaming consoles, or other network equipment.¹⁴



• Design and Cooling: Features a compact design (e.g., 90 mm x 96.6 mm x 178 mm) and often incorporates a silent 30 dB cooling fan that adjusts speed based on temperature to ensure stable performance without excessive noise.¹⁵



• Other Features:
  • 5G Network Slicing: This advanced feature (though often for testing only and dependent on operator support) allows for customizing network characteristics, such as prioritizing low latency for gaming or high bandwidth for 8K streaming.¹⁶



  • MU-MIMO: (Multi-User, Multiple-Input, Multiple-Output) improves Wi-Fi efficiency by allowing the router to communicate with multiple devices simultaneously, reducing lag, especially in environments with many connected devices (supports up to 128 devices).¹⁷



  • OFDMA: (Orthogonal Frequency Division Multiple Access) further enhances efficiency in Wi-Fi 6 by allowing multiple devices to share a single channel.¹⁸



  • Huawei HiLink Mesh: Supports creating a whole-home mesh Wi-Fi system by connecting with other Huawei Wi-Fi routers for seamless coverage.
  • Management: Can be managed via the HUAWEI AI Life APP (Android) or HUAWEI Smart Home APP (iOS) for easy setup and configuration.¹⁹



Use Cases:

The Huawei 5G CPE Pro 2 is primarily used to:

1. Provide High-Speed Home Internet: Ideal for households where fiber or traditional broadband options are unavailable or expensive, allowing users to leverage 5G cellular networks for their primary internet connection.
2. Backup Internet Connection: Can serve as a reliable backup for wired broadband, automatically switching to 5G if the main connection fails.
3. Temporary or Mobile Internet: Excellent for situations requiring portable internet, such as pop-up offices, construction sites, events, or even larger RVs/campers, where a stable and fast connection is needed for multiple devices.
4. Gaming and Streaming: Its high 5G and Wi-Fi 6 speeds, along with features like “Super Uplink” and network slicing, make it well-suited for demanding applications like online gaming and 4K/8K video streaming.²⁰



5. Small Office/Home Office (SOHO): Provides sufficient bandwidth and connectivity options for a small number of users in a professional setting.

In summary, the Huawei 5G CPE Pro 2 is a powerful and feature-rich 5G CPE (Customer Premises Equipment) that brings the benefits of high-speed 5G connectivity and advanced Wi-Fi 6 technology to homes and small businesses, aiming to deliver a fast, reliable, and versatile internet experience.
